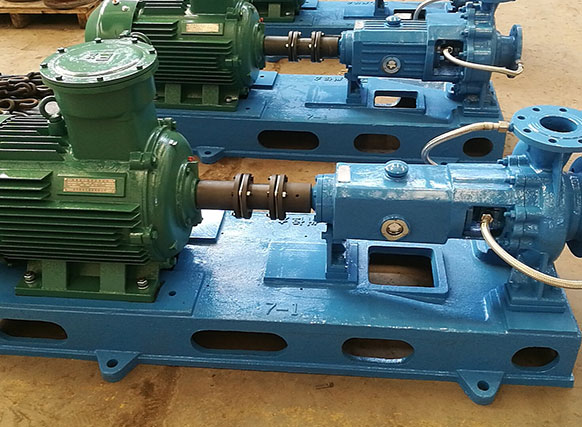

HCZ系列化工流程泵 / HCZ Series
規格 | 性能參數 | 配用電機（按照介質比重） | 汽蝕余量 m req | 進口法蘭直徑 | |||||||
轉速 r/min | 葉輪型式 | 流量 (m3/h) | 揚程 (m) | 效率 % | 軸功率 kw | γ=1.0 | γ=1.35 | γ=1.84 | |||
200-400 | 1450 | A | 650 | 52 | 84 | 109.5 | Y315M1-4/132 | Y315M2-4/160 | Y315L-4/200 | 3.5 | 250 |
B | 550 | 45 | 84 | 80.21 | Y280M-4/90 | Y315M1-4/132 | Y315M2-4/160 | ||||
C | 500 | 40 | 84 | 64.82 | Y280S-4/75 | Y280M-4/90 | Y315M1-4/132 | ||||
D | 450 | 30 | 84 | 43.75 | Y225M-4/45 | Y280S-4/75 | Y280M-4/90 | ||||
200-500 | 1450 | A | 700 | 75 | 81.5 | 175.4 | Y315L-4/200 | Y3554-4/250 | 4001-4/355 | 3 | 250 |
B | 650 | 65 | 81.5 | 141.1 | Y315M2-4/160 | Y355L-4/200 | Y3555-4/280 | ||||
C | 550 | 55 | 81.5 | 101 | Y315S-4/110 | Y315M2-4/160 | Y315L-4/200 | ||||
D | 450 | 40 | 81.5 | 60.12 | Y280S-4/75 | Y230M-4/90 | Y315M2-4/160 | ||||
250-315 | 1450 | A | 950 | 22 | 86 | 66.16 | Y280S-4/75 | Y315S-4/110 | Y230M-4/90 | 5 | 300 |
B | 900 | 20 | 86 | 56.98 | Y80S-4/75 | Y280M-4/90 | Y315S-4/110 | ||||
C | 800 | 16 | 86 | 40.52 | Y225M-4/45 | Y280S-4/75 | Y280M-4/90 | ||||
250-400 | 1450 | A | 1000 | 44 | 83 | 144.3 | Y315M2-4/160 | Y315L-4/200 | Y280S-4/75 | 6 | 300 |
B | 900 | 38 | 83 | 112.2 | Y315M1-4/132 | Y315M2-4/160 | Y315L-4/200 | ||||
C | 850 | 30 | 83 | 83.63 | Y280M-4/90 | Y315M2-4/160 | Y315M2-4/160 | ||||
D | 800 | 24 | 83 | 62.97 | Y280S-4/75 | Y315S-4/110 | Y315M-4/132 | ||||
250-500 | 1450 | A | 1200 | 80 | 85 | 307.5 | Y3556-4/315 | Y4003-4/450 | Y4005-4/560 | 6 | 300 |
B | 1100 | 70 | 85 | 246.6 | Y3554-4/250 | Y4001-4/355 | Y4003-4/450 | ||||
C | 1000 | 55 | 85 | 176.1 | Y3552-4/200 | Y3554-4/250 | Y4001-4/355 | ||||
D | 850 | 45 | 85 | 122.5 | Y352M2-4/160 | Y315L-4/200 | Y3554-4/250 | ||||
300-400 | 1450 | A | 1500 | 40 | 87 | 187.7 | Y315L-4/200 | Y3555-4/280 | Y4001-4/355 | 6 | 350 |
B | 1400 | 30 | 87 | 131.4 | Y315M2-4/160 | Y315L-4/200 | Y3554-4/250 | ||||
C | 1300 | 25 | 87 | 101.7 | Y315S-4/110 | Y315M2-4/160 | Y315L-4/200 | ||||
D | 1300 | 20 | 87 | 81.35 | Y280M-4/90 | Y315M1-4/132 | Y315M2-4/160 | ||||
300-500 | 1450 | A | 1700 | 70 | 83.5 | 388 | Y4002-4/400 | Y4005-4/560 | Y4502-4/710 | 6 | 350 |
B | 1500 | 60 | 83.5 | 293.4 | Y3556-4/315 | Y4002-4/400 | Y4005-4/560 | ||||
C | 1300 | 50 | 83.5 | 211.9 | Y3553-4/220 | Y3556-4/315 | Y4002-4/400 | ||||
D | 1100 | 40 | 83.5 | 143.5 | Y315M2-4/160 | Y3553-4/220 | Y3555-4/280 | ||||
