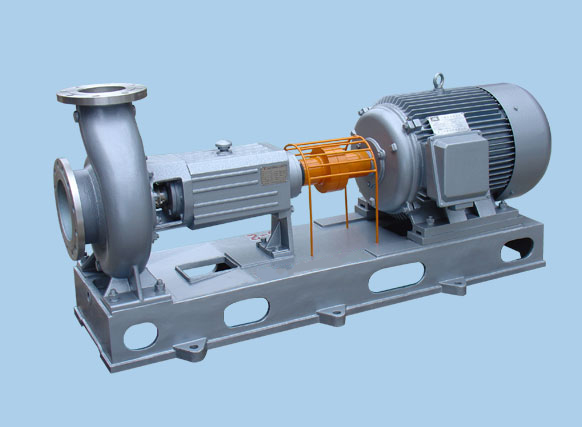

HZT系列化工通道泵 / HZT Series
用途
HZT泵的用途，主要用于石油、化工、造紙、制糖、醫藥、發電廠、煉鋼廠、煉油廠等含有少量雜質或稀粘稠的強腐蝕性介質的輸送。
型號說明
型號 | 轉速 r/min | 流量 m3/h | 揚程 m | 額定流量 m3/h | 額定揚程 m | 效率 | 軸功率 kw | 配用電機 | 汽蝕余量 | ||
比重γ=1.00 | 比重γ=1.35 | 比重γ=1.84 | |||||||||
32-20-180 | 1450 | 1.8-3 | 10-12 | 2 | 11.5 | 17.5 | 0.36 | Y801-4/0.55 | Y801-4/0.55 | Y802-4/0.75 | 2.0 |
2900 | 3.5-6 | 40-48 | 4 | 46 | 17.5 | 2.86 | Y100L-2/3 | Y112M-2/4 | Y132S1-2/5.5 | ||
32-20-180A | 3-5 | 35-40 | 3.6 | 37 | 16 | 2.26 | Y100L-2/3 | Y112M-2/4 | Y132S1-2/5.5 | ||
40-25-125 | 2900 | 4.8-7.2 | 16-22 | 6 | 20 | 40 | 0.82 | Y802-2/1.1 | Y90S-2/1.5 | Y90L-2/2.2 | 2.0 |
40-25-125A | 4-6.2 | 13-18 | 5.2 | 15 | 35 | 0.61 | Y801-2/0.75 | Y802-2/1.1 | Y90S-2/1.5 | ||
40-25-125B | 2.5-3.8 | 13-18 | 3.1 | 15 | 35 | 0.36 | Y801-2/0.75 | Y801-2/0.75 | Y801-2/0.75 | ||
40-25-160 | 2900 | 4.8-7.2 | 24-33 | 6 | 30 | 33 | 1.48 | Y90L-2/2.2 | Y100L-2/3 | Y100L-2/3 | 2.0 |
40-25-160A | 4-6.2 | 20.8-31.2 | 5.2 | 26 | 27 | 1.36 | Y90S-2/1.5 | Y90L-2/2.2 | Y100L-2/3 | ||
40-25-160B | 3.2-4.8 | 16-22 | 4 | 20 | 27 | 0.8 | Y802-2/1.1 | Y90S-2/1.5 | Y90L-2/2.2 | ||
40-25-160C | 2.4-3.6 | 11.2-16.5 | 3 | 14 | 19 | 0.6 | Y801-2/0.75 | Y802-2/1.1 | Y90S-2/1.5 | ||
40-25-200 | 2900 | 4.8-7.2 | 4O-55 | 6 | 50 | 25.5 | 3.2 | Y112M-2/4 | Y132S1-2/5.5 | Y132S2-2/7.5 | 2.0 |
40-25-2O0A | 4.4-6.6 | 36.8-51 | 5.5 | 46 | 25.5 | 2.7 | Y100L-2/3 | Y112M-2/4 | Y132S1-2/5.5 | ||
40-25-200B | 3.8-5.7 | 32-45 | 4.8 | 40 | 24.9 | 2.1 | Y90L-2/2.2 | Y100L-2/3 | Y112M-2/4 | ||
40-25-200C | 2.8-4.3 | 24-35 | 3.6 | 30 | 22.6 | 1.1 | Y90S-2/1.5 | Y90L-2/2.2 | Y90L-2/2.2 | ||
40-25-250 | 2900 | 4.8-7.2 | 64-85 | 6 | 80 | 24.2 | 5.4 | Y132S2-2/7.5 | Y132S2-2/7.5 | Y160M1-2/11 | 2.0 |
40-25-250A | 4.5-6.7 | 60-80 | 5.6 | 75 | 22.9 | 5.0 | Y132S1-2/5.5 | Y132S2-2/7.5 | Y160M1-2/11 | ||
40-25-250B | 3.8-5.7 | 52-70 | 4.8 | 65 | 22.3 | 3.8 | Y112M-2/4 | Y132S1-2/5.5 | Y132S2-2/7.5 | ||
40-25-250C | 2.8-4.3 | 40-55 | 3.8 | 50 | 19.2 | 2.7 | Y100L-2/3 | Y112M-2/4 | Y132S1-2/5.5 | ||
50-32-125 | 1450 | 5-9 | 4-6 | 6.3 | 5 | 45 | 0.19 | Y801-4/0.55 | Y801-4/0.55 | Y801-4/0.55 | 2.0 |
2900 | 10-15 | 16-22 | 12.5 | 20 | 51 | 1.33 | Y90S-2/1.5 | Y90L-2/2.2 | Y90L-2/2.2 | ||
50-32-125A | 9-14 | 13-18 | 11.3 | 16.2 | 49 | 1.02 | Y90S-2/1.5 | Y90S-2/1.5 | Y90S-2/1.5 | ||
50-32-160 | 1460 | 5-9 | 6.5-9.6 | 6.3 | 8 | 40 | 0.34 | Y801-40.55 | Y801-4/0.55 | Y801-4/0.55 | 2.0 |
2900 | 10-15 | 25.6-33 | 12.5 | 32 | 46 | 2.37 | Y100L-2/3 | Y112M-2/4 | Y112M-2/4 | ||
50-32-150A | 9.3-13.5 | 20.8-31.2 | 11.2 | 26 | 43 | 1.84 | Y90L-2/2.2 | Y100L-2/3 | Y100L-2/3 | ||
