0571-58838696產品中心

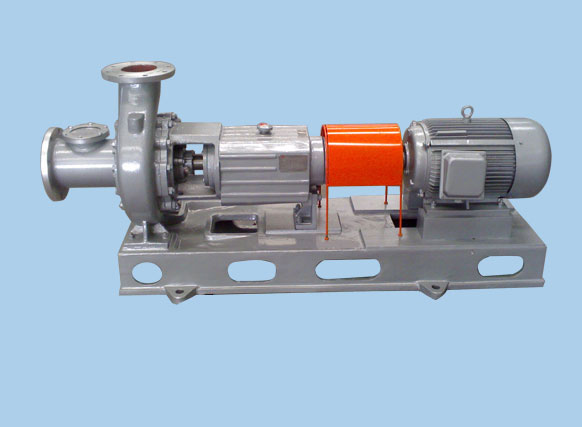

HZJ系列紙漿泵 / HZJ Series
用途
HZJ的用途：主要用于造紙行業或類似漿液的強腐蝕性介質的輸送。

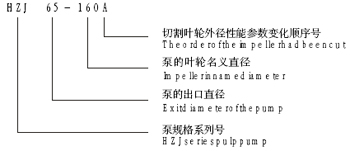

型號說明
型號 | 轉速 r/min | 流量 m3/h | 揚程 m | 軸功率 kw | 效率 | 配套電機 | |||
額定點 | 使用范圍 | 額定點 | 使用范圍 | 比重γ=1.00 | 比重γ=1.35 | ||||
HZJ65-160 | 2900 | 50 | 40-60 | 32 | 34-27 | 7.2 | 60.5 | Y132S2-2/7.5 | Y160M1-2/11 |
HZJ50-250 | 2900 | 50 | 40-60 | 80 | 85-75 | 21.24 | 51.3 | Y180M-2/22 | Y200L1-2/30 |
1450 | 25 | 15-30 | 20 | 22-16 | 2.89 | 47 | Y100L2-4/3 | Y112M-4/4 | |
HZJ50-315 | 2900 | 50 | 40-60 | 125 | 127-110 | 33.13 | 51.4 | Y200L2-2/37 | Y225M-2/45 |
1450 | 25 | 15-30 | 32 | 34-29 | 4.36 | 50 | Y132S-4/5.5 | Y132M-4/7.5 | |
HZJ65-200 | 2900 | 100 | 80-120 | 50 | 55-45 | 21.6 | 63 | Y180M-2/22 | Y200L1-2/30 |
1450 | 50 | 40-60 | 12.5 | 15-10 | 2.84 | 60 | Y100L2-4/3 | Y112M-4/4 | |
HZJ65-250 | 2900 | 100 | 80-120 | 80 | 84-70 | 36.94 | 59 | Y200L2-2/37 | Y250M-2/55 |
1450 | 50 | 40-60 | 20 | 22-17 | 4.8 | 56.7 | Y132S-4/5.5 | Y132M-4/7.5 | |
HZJ65-315 | 2900 | 100 | 80-120 | 125 | 127-110 | 61.04 | 55.8 | Y280S-2/75 | Y280M-2/90 |
1450 | 50 | 40-60 | 32 | 33-28 | 7.92 | 55 | Y160M-4/11 | Y160M-4/11 | |
HZJ100-200 | 2900 | 200 | 160-240 | 50 | 55-46 | 40.07 | 68 | Y225M-2/45 | Y250M-2/55 |
1450 | 100 | 80-120 | 12.5 | 14-10 | 5.08 | 67 | Y132S-4/5.5 | Y132M-4/7.5 | |
HZJ100-315A | 1450 | 93 | 65-100 | 28 | 30-25 | 11.63 | 62 | Y16L-4/15 | Y180M-4/18.5 |
ZJ100-315B | 1450 | 87 | 70-100 | 24 | 27-20 | 9.4 | 61 | Y160M0-4/11 | Y160L-4/15 |
HZJ100-400 | 1450 | 100 | 80-120 | 50 | 52-42 | 24.4 | 55.8 | Y200L-4/30 | Y225S-4/37 |
HZJ100-400A | 1450 | 93 | 65-110 | 43 | 45-41 | 19.63 | 55.5 | Y180L-4/22 | Y200L-4/30 |
HZJ80-200 | 2900 | 150 | 120-180 | 50 | 55-45 | 32.44 | 63 | Y225S-4/37 | Y225M-2/45 |
1450 | 75 | 60-90 | 12.5 | 15-10 | 4.17 | 61.2 | Y132S-4/5.5 | Y132M-4/7.5 | |
HZJ125-250 | 1450 | 200 | 160-240 | 20 | 22-18 | 15.8 | 69 | Y180M-4/18.5 | Y180L-4/22 |
